Center Parcs, Allgäu
Holiday homes
Location
Allgäuallee 40, 88299 Leutkirch im Allgäu
Construction year2018

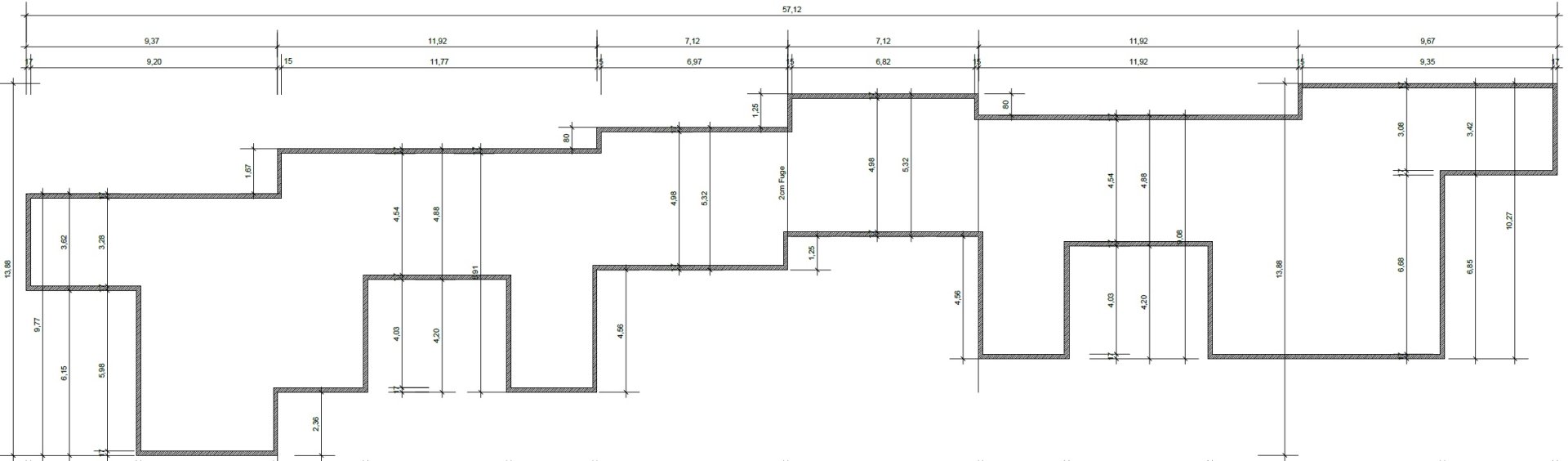

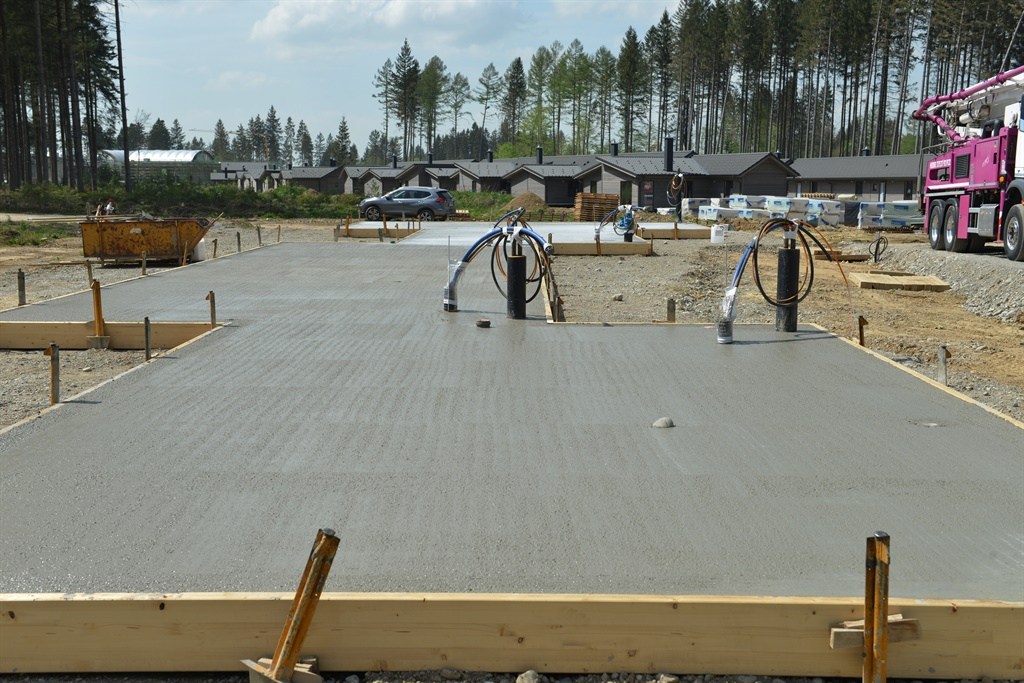

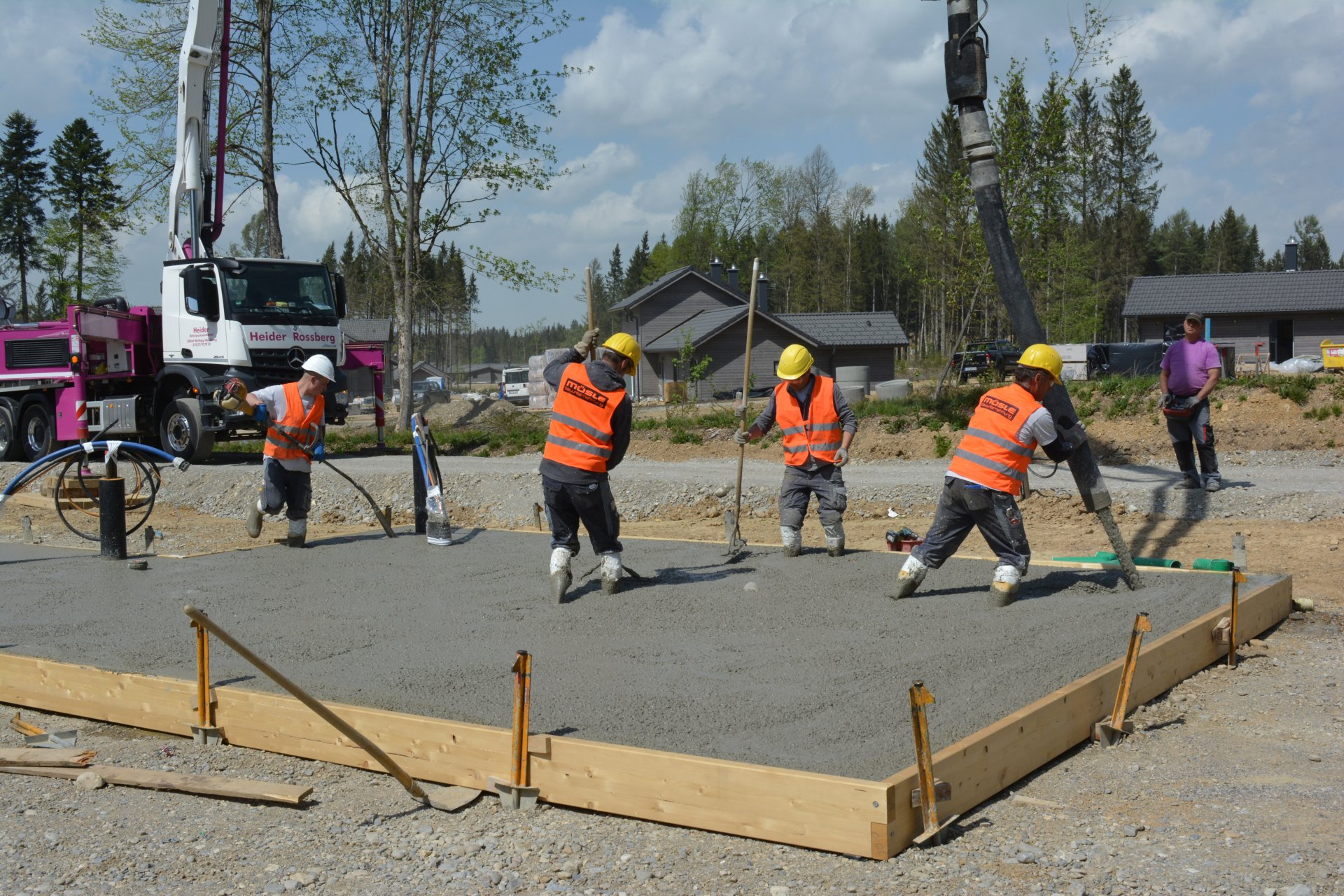

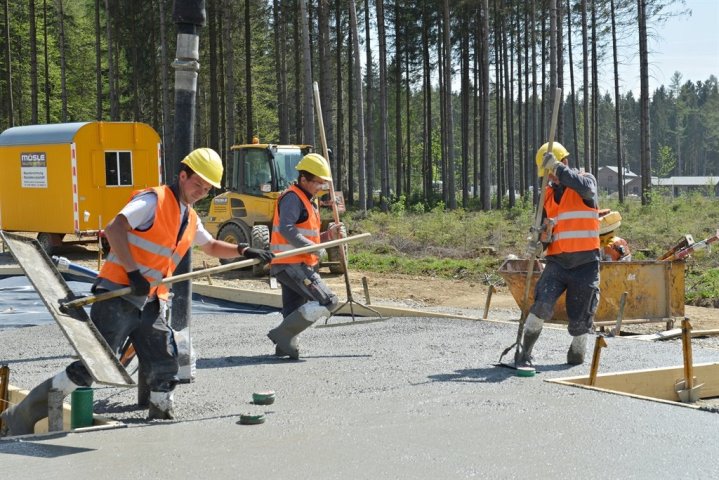

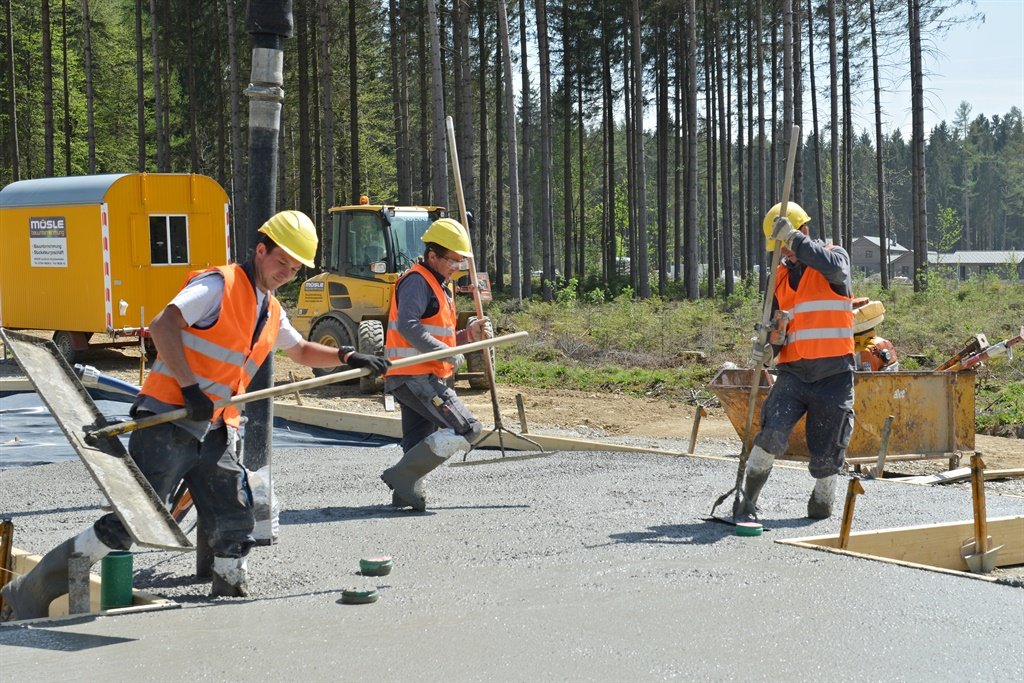

Project description750 foundation slabs in steel fibre reinforced concrete for holiday homes at Center Parcs in Allgäu.
Optimisation with SFRC
- Elimination of the planned reinforcement Ø12/12 cm crosswise at the top and bottom
- All 750 No. planned foundation slabs could be designed without traditional mesh or rebar

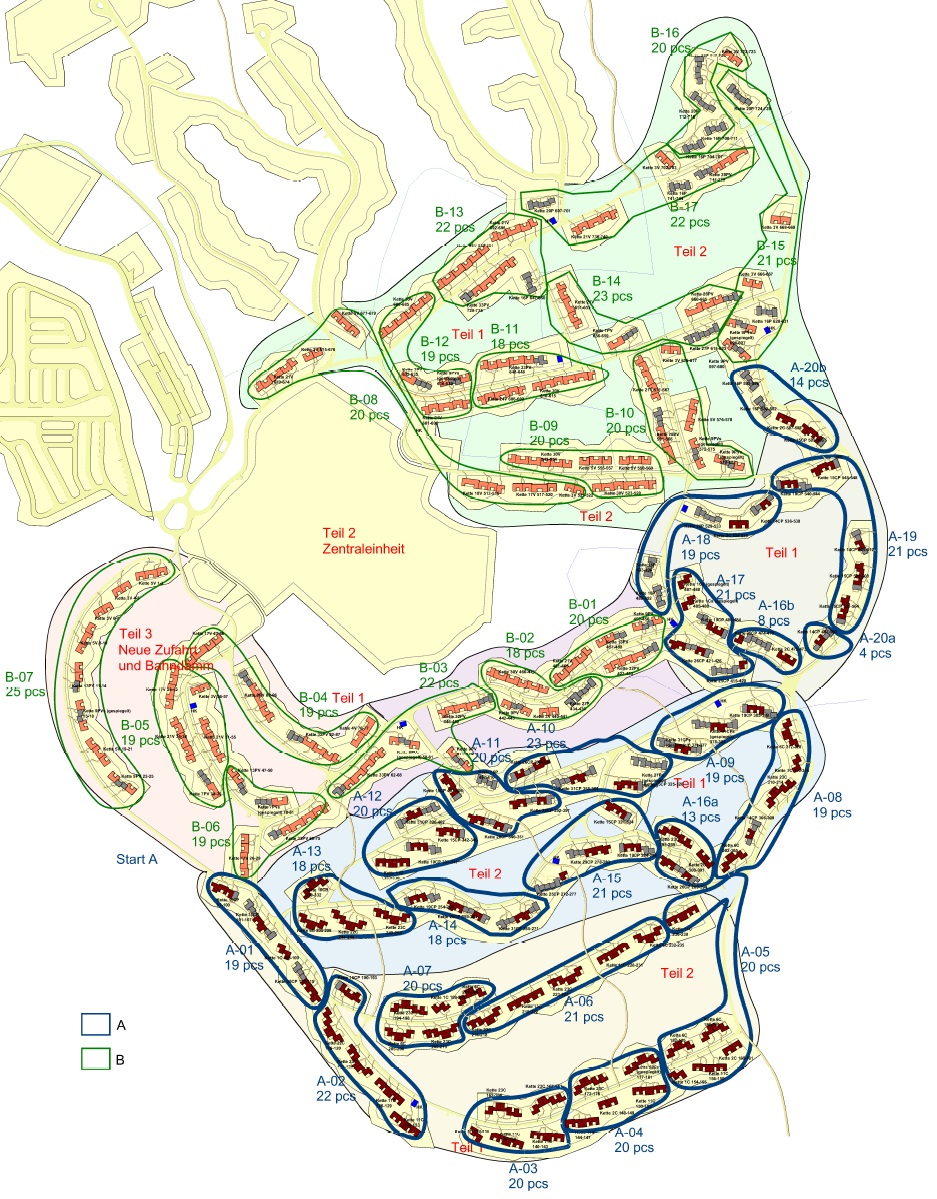

- Thanks to the use of steel fibre reinforced concrete, the construction company was able to tender not only for the first, but also for the second construction lot (375 foundation slabs per lot)
- This enabled a "small" construction company to complete an area of 53,000 m² with approx. 14,000 m³ of concrete, relying on just a handful of employees

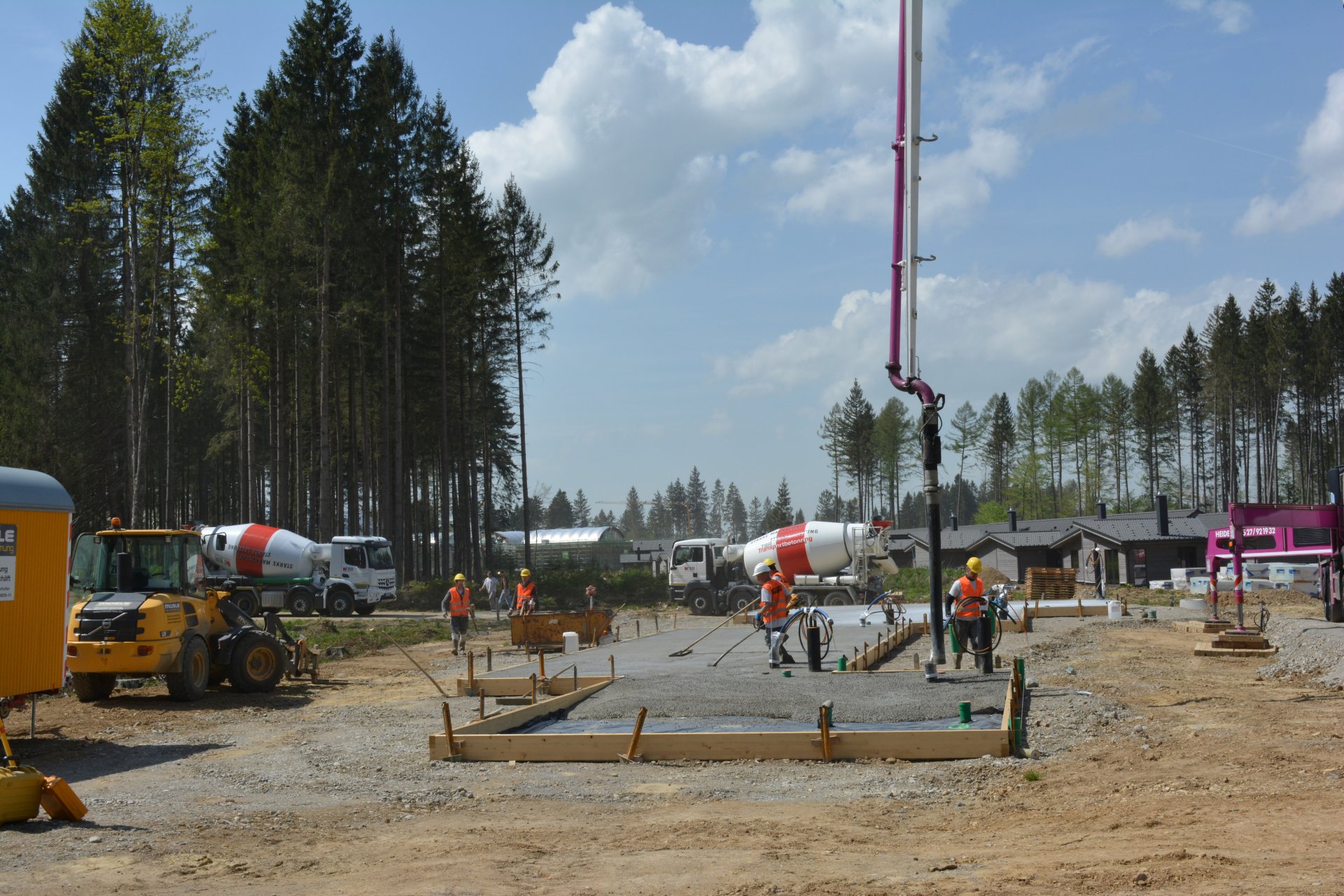

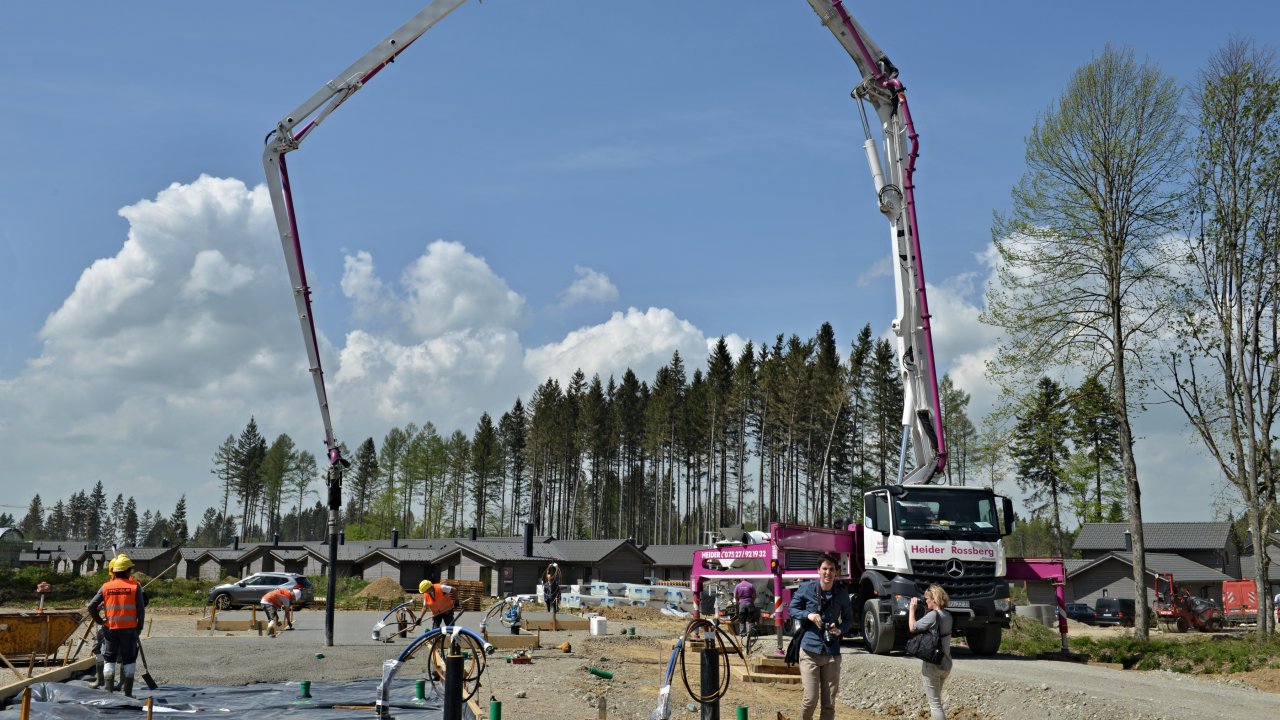

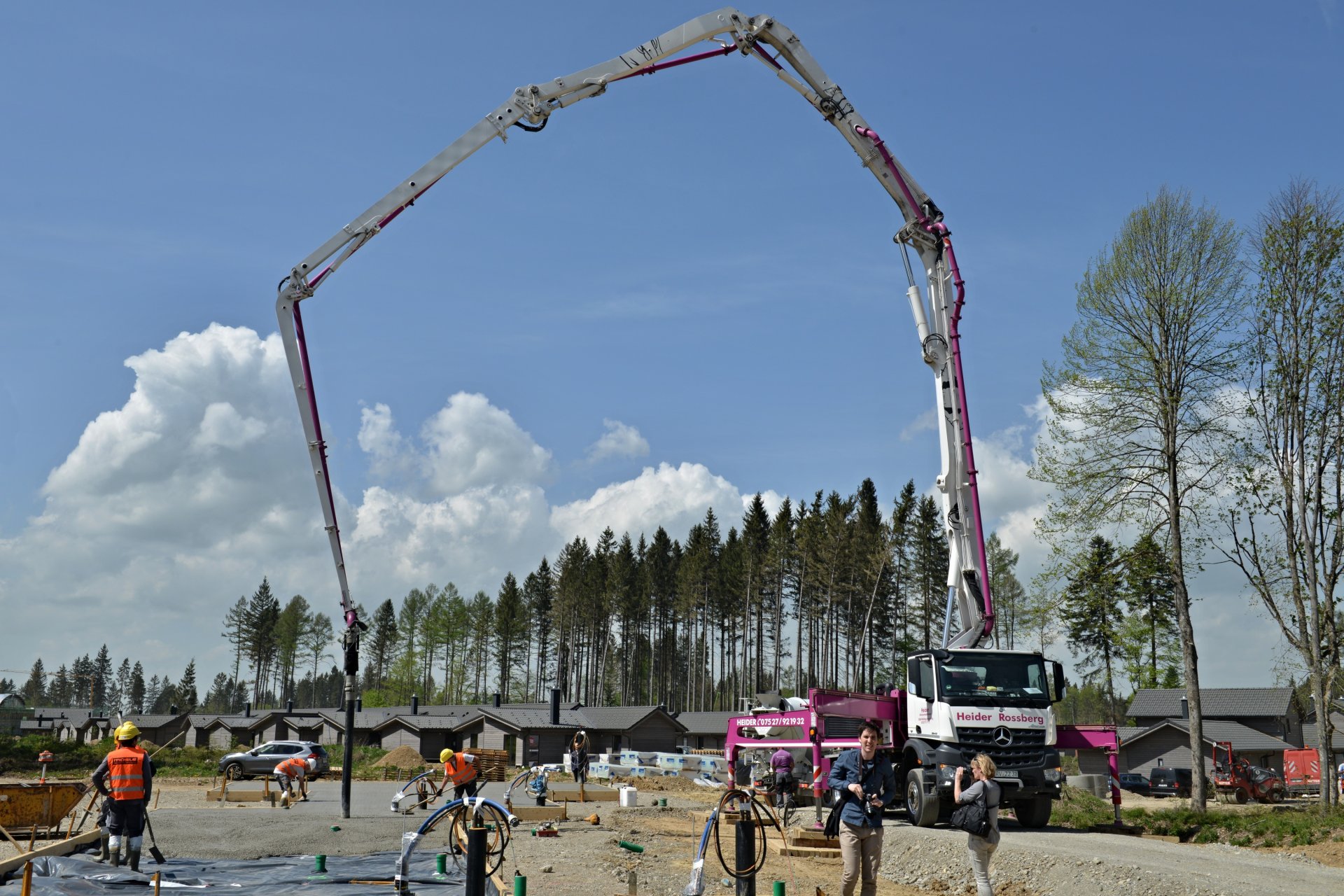

- Despite longer distances to the construction area, the steel fibre reinforced concrete could be pumped without any issues
Slab thickness
25 cm
Executionfibre only
ConcreteC25/30
Performance classL1,2/1,2
Fibre typeDramix® 3D 55/60BL
Owner
Center Parcs Leisure Deutschland GmbH
Building contractorGordian Mösle GmbH
Original solutionWP Ingenieure - Partnerschaft Beratender Ingenieure mbB, Hamburg
Cubatureca. 14.000 m³
