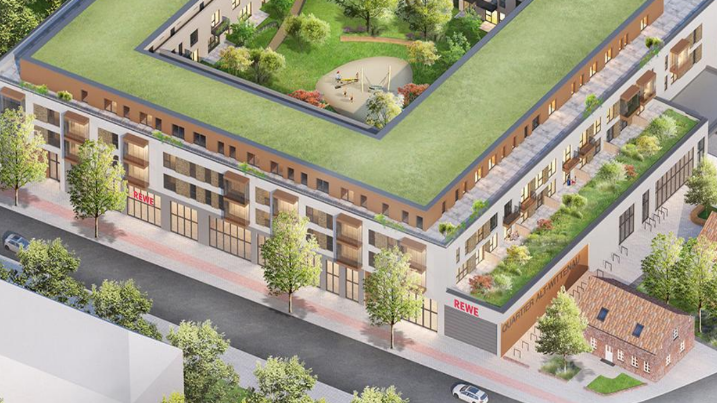

Graphic: ©ImmProjekt Entwicklungs GmbH & Co. Roedernallee KG

Quartier Alt-Wittenau, Berlin 2024

New Construction of a Residential Building with Retail Spaces

Location

Rödernallee 118, 13437 Berlin

Construction year

2024

Project description

Steel fiber reinforced concrete was used for the foundation slab of a new residential building with retail spaces on Rödernallee in Berlin.

Optimisation with SFRC
  • Accelerated construction process through the use of steel fiber reinforced concrete
  • Optimized standard slab thickness, reduced by 10 cm, and up to 20 cm for the 36 haunches, compared to the original design
  • A significant economic advantage was achieved by lowering concrete costs due to the reduced slab thickness
  • Crack width control reinforcement was reduced by more than half → enabling efficient execution and delivering a cost benefit
Slab thickness

45 – 115 cm

Execution

combined reinforcement

Concrete

C35/45

Performance class

L2,1/2,1

Dosage

30 kg/m³

Fibre type

Dramix® 4D 65/60BGX

General contractor

Dresdner Industrie- und Wohnungsbaugesellschaft mbH, 01917 Kamenz

Original solution

LHT Bauingenieure GmbH, 10627 Berlin

Floor area

ca. 5.000 m²

Cubature

ca. 3.180 m³
