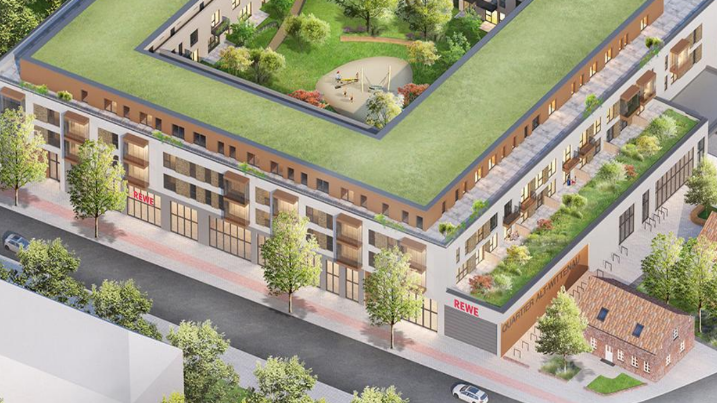

Graphic: ©ImmProjekt Entwicklungs GmbH & Co. Roedernallee KG
Quartier Alt-Wittenau, Berlin
Construction of a residential building with retail spaces
Location
Rödernallee 118, 13437 Berlin
Construction year2024
Project descriptionCombined reinforcement for the foundation slabs of this residential and commercial building with retail spaces in Rödernallee, Berlin.
Optimisation with SFRC
- The construction process was sped up due to the use of combined reinforcement
- Optimisation/reduction of the main slab thickness by 10 – 20 cm for the 36 haunches when compared to the original solution
- The reduction in costs for the concrete (due to the reduced slab thickness) resulted in a major economic benefit
- Reduction of the crack width-limiting reinforcement by more than half -> Optimal constructability/economic aspect
Slab thickness
45 - 115 cm
Executioncombined reinforcement
ConcreteC35/45
Performance classL2,1/2,1
Dosage30 kg/m³
Fibre typeDramix® 4D 65/60BGX
General contractor
Dresdner Industrie- und Wohnungsbaugesellschaft mbH, 01917 Kamenz
Original solutionLHT Bauingenieure GmbH, 10627 Berlin
Floor areaca. 5.000 m²
Cubatureca. 3.180 m³
