Vinzent R22

Residential building with three-storey underground car park

Location

Gabrielenstraße 3 / Rupprechtstraße 22 - 24, 80636 München, Neuhausen

Construction year

2022 — 2024

Project description

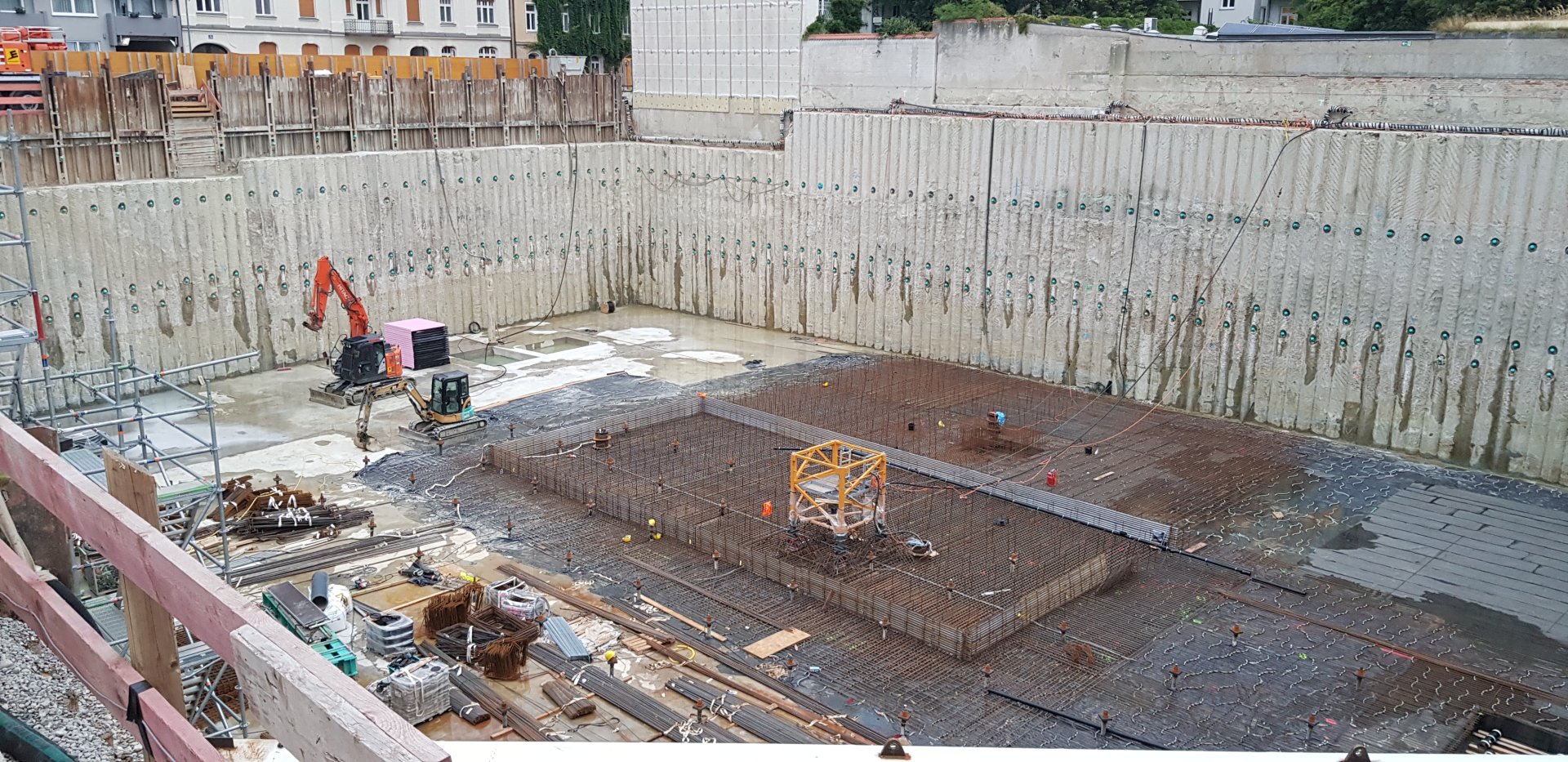

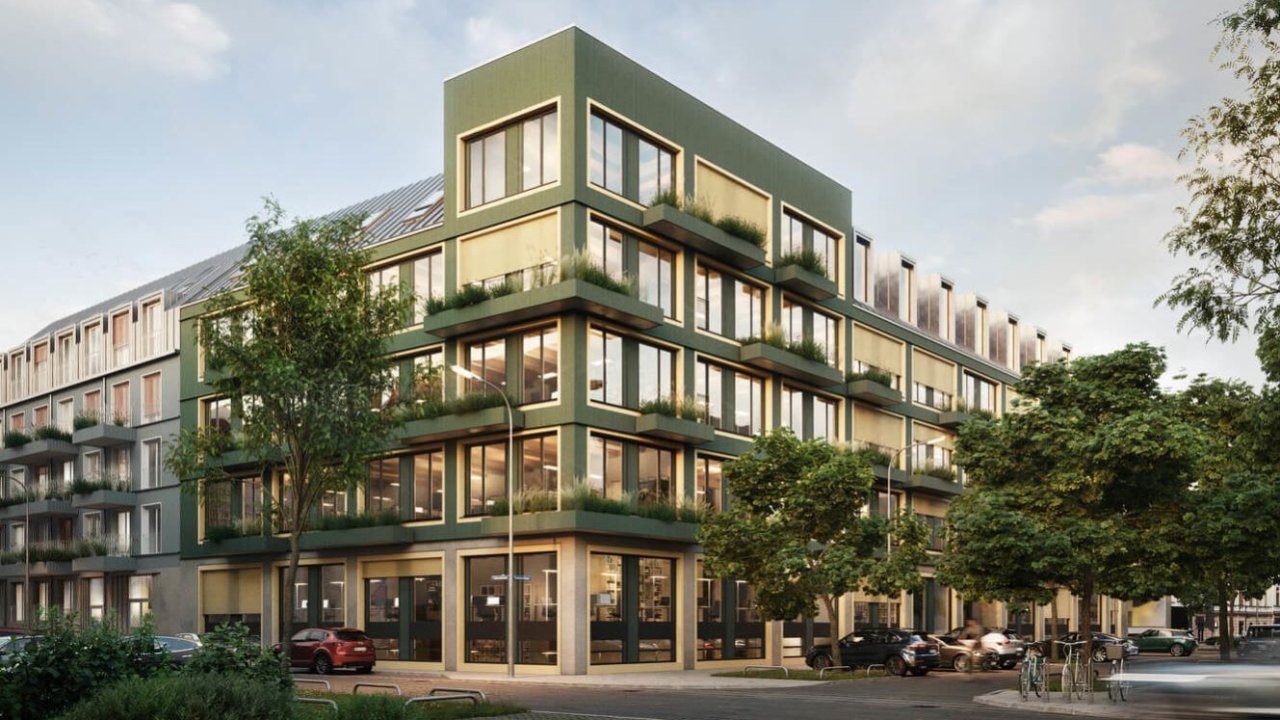

The multifunctional building VINZENT, with its lush green façade, stands as a clear statement of sustainability. For this project, steel fiber reinforced concrete was used in the foundation slab of Munich’s first timber hybrid building located in the heart of the city.

Optimisation with SFRC

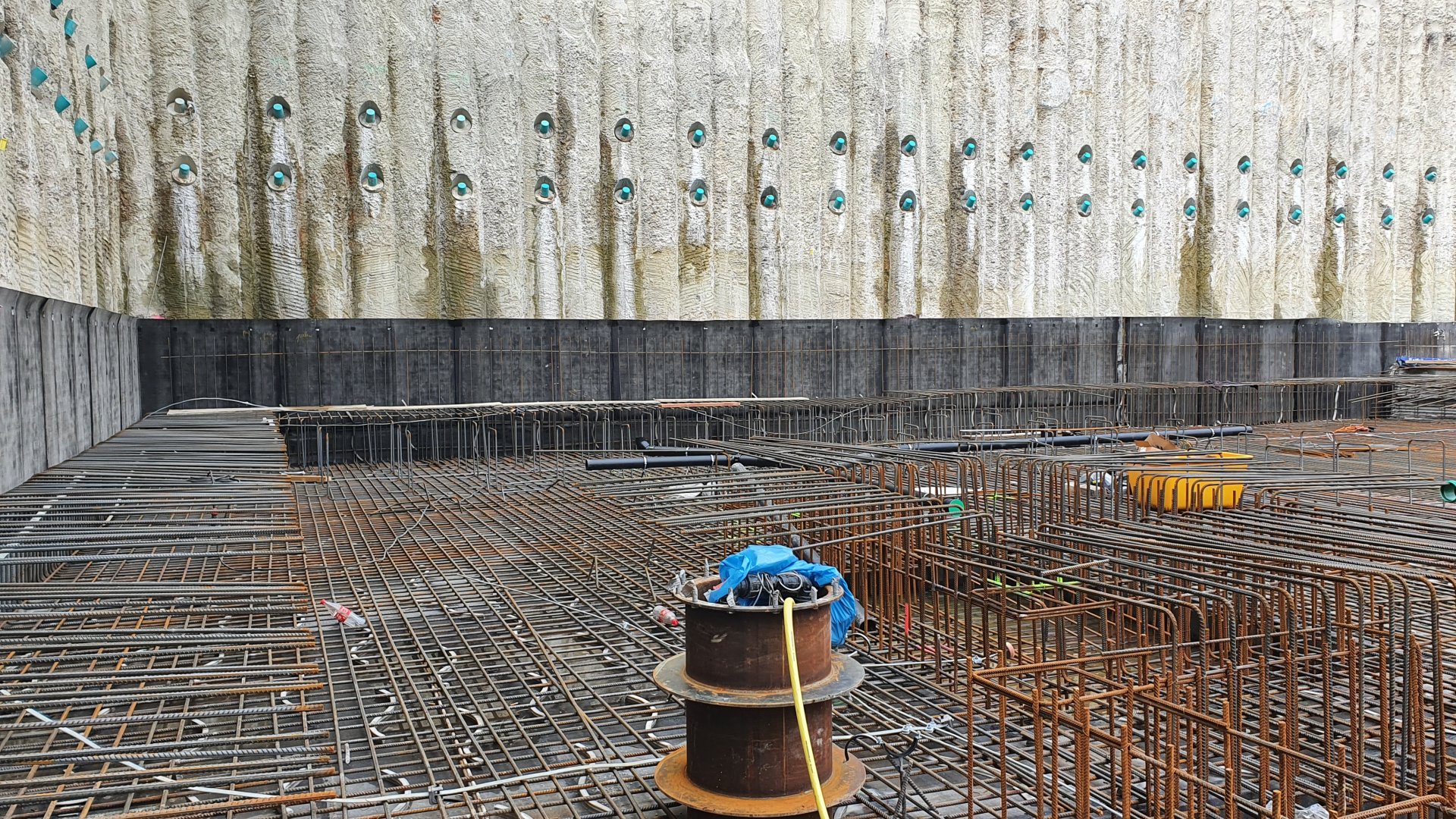

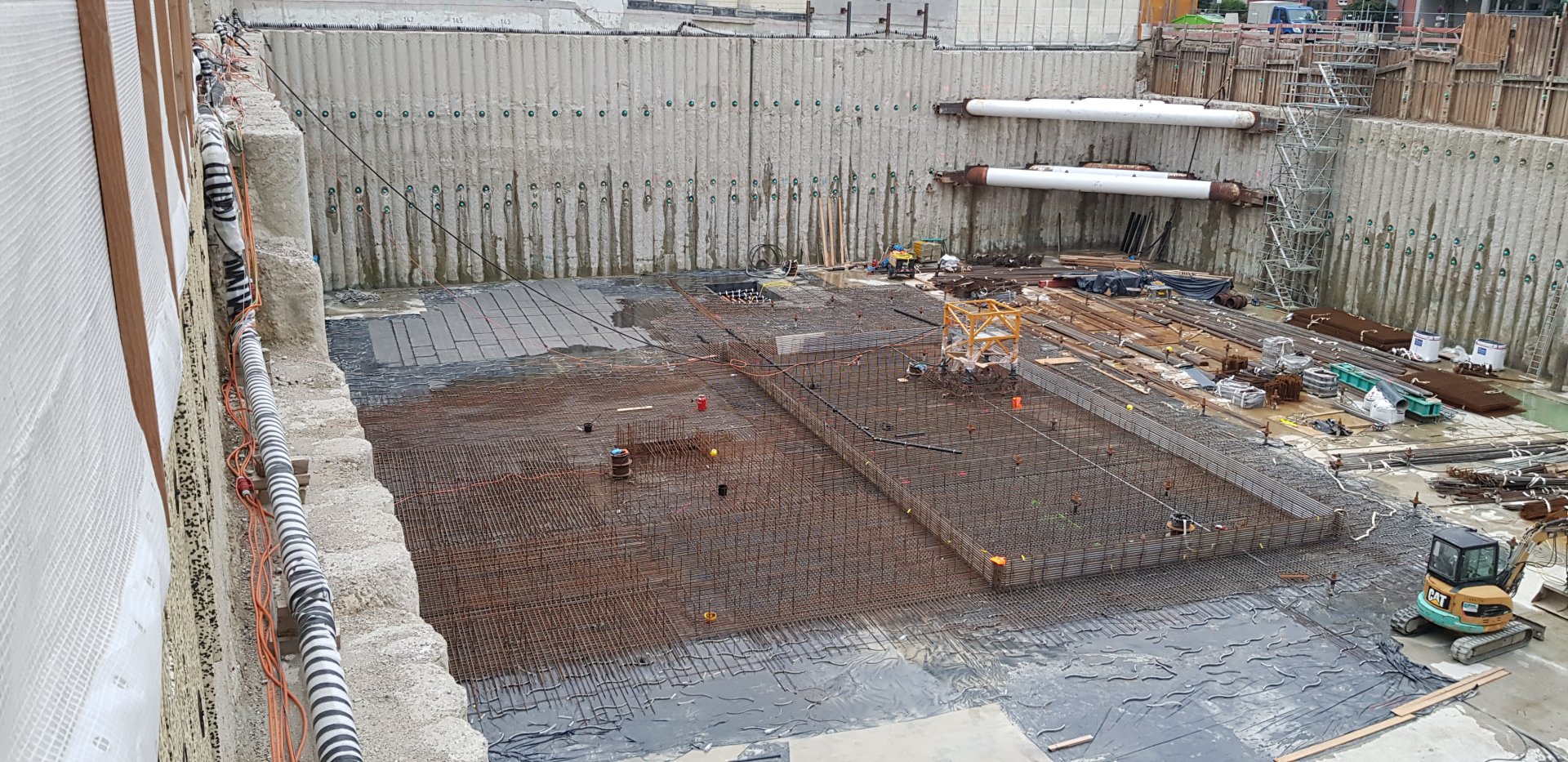

By using steel fibre reinforced concrete in the foundation slab, a total of approx. 155 tonnes of steel could be saved
Assuming an average GWP value of 1 kgCO2e/kg for the reinforcing steel, at least 75 t CO2e were ultimately saved
For this building project, a sustainability certification LEED Core & Shell Gold is aimed for. The optimisation with steel fibre reinforced concrete made a huge contribution towards this

Slab thickness

100 cm

Execution

combined reinforcement

Concrete

C35/45

Performance class

L2,1/2,1

Fibre type

Dramix® 5D 65/60BG

Owner

Bauwerk München 22 GmbH
